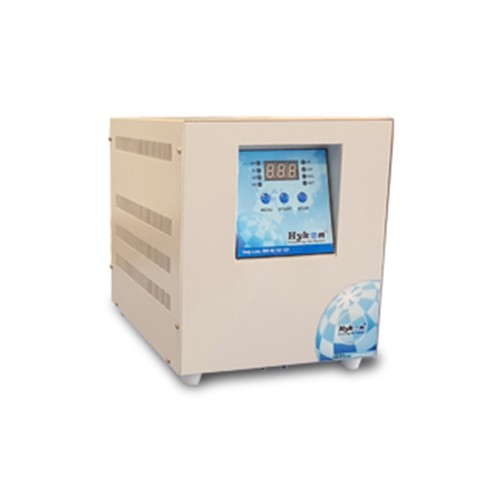

Air Cooled Servo Stabilizer

Micro Processor Controlled stabilizer for providing stabilized output for industries purposes.

Hykon's Air Cooled Servo Stabilizer comes with a micro processor controlled feature and guarantees more than 98% efficiency. The servo stabilizer contains a motorized Auto Transformer which bucks or boosts input supply to give a stabilized output. Servo stabilizers are ideal for sensitive equipment used in industries. The method of cooling used in the system is natural cooling (Air Cooling). The stabilizer is used in various applications such as Offset Printing Machines, CNC Machines, Signalling Radars, Telecommunication Exchanges, Air conditioning plants, Escalators/ Elevators, Medical Equipment, General Laboratories, Hospitals, Industrial & Lighting Loads, and AC Motors.

Advantages of Servo Stabilizer

Controlled & Constant Voltage
Reduced Failure Rate of Electrical Equipment
Reduction in the DownTime / Maintenance expenses
Improvement in the Power Factor
Reduction in the MDI ( Max. Demand)
Immediate response to input transient surges
Energy Saving- Reduction in power wastage ( lower electricity bills)

Models and Capacities

*Courier Charges Extra. Conditions Apply.

Series	Description	Voltage Range	Available Capacities
SAN-1	Servo Air cooled - Normal Range - 1φ in 1φ out	170V - 270V	1KVA to 15 KVA
SAW-1	Servo Air cooled - Wide Range -1φ in 1φ out	150V – 270V	1KVA to 15KVA
SAN-3	Servo Air cooled -Normal Range- 3 φ in 3φ out	330V – 470V	3KVA to 100KVA
SAW-3	Servo Air cooled- Wide Range- 3 φ in 3φ out	290V – 470V	3KVA to 75KVA

*Courier Charges Extra. Conditions Apply.

General

Short circuit

300% for 250 ms

Normal operating temp

0 to 45°C

Climate condition

90% RH max

Protection

Over/Under voltage trip, overload protection with MCB, Single phase preventor (optional)

Indications

Input ON, Output ON, Input low, Input high, Output trip

Metering

Voltmeter with selector switch for input & output
